62000-Litre Fuel Storage Container & Dispenser Pump

40FT Containerised Fuel Station

These containers are made of steel and are designed to be transported by truck, train, or ship.
They are commonly used in the mining industry for the storage and transportation of fuel to remote locations.
They are also used by businesses and organizations that require on-site fuel storage, such as construction companies, mining operations, and disaster relief organizations.
These containers are also equipped with safety
features, such as pressure and vacuum relief valves, to prevent accidents and spills.

Our tank is durable and usable for long-term use. With proper and regular maintenance, they can be used repeatedly. Besides, because they are portable, they can be moved around easily. Moreover, their heavy-duty design makes them ideal to be put even in harsh conditions.
This tank can be a fuel storage solution at your project site. This tank is easy to install and has an easy loading and unloading process. It will save your time and cost.

S.No	Description	Specification
1	Tank volume	62,000 Liters
2	Storage	Diesel
3	Tank Type	Double walled square tank, one compartment, with strengthen plates inside tank, corner steel bended.
4	Overall dimension	Length 12192mmwidth 2438mmheight 2896mm
5	Tank inside dimension	Length 10,300mm, Width 2,350mm, Height 2600mm
6	Tank Steel	Tank carbon steel Q235B, tank wall thickness 6mm, strength plates 5mm

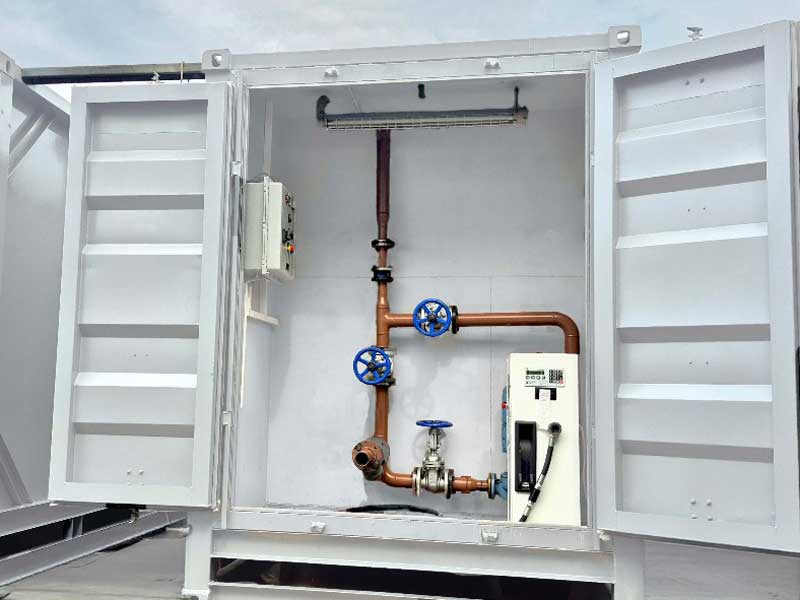

7	Pump compartment	One pump compartment at end of tank. Equipped with inlet pump, electric control cabinet etc.
8	Dispenser	One dispenser with two filling hoses, two pumps inside, flow rate 80L/min.
9	Pump	One inlet pump, for diesel into tank. Flow rate 30cbm/h.
10	Level gauge	One electric level gauge in pump compartment
11	Outlet system	DN40 oil outlet pipe, equipped with maintenance protection ball valve.
12	Vent cap	One vent cap on top of tank.
13	Anti-static system	Electrostatic grounding alarm
14	Fire extinguisher	In top of pump compartment. The ultra-fine dry powder fire extinguisher is filled with appropriate amount of driving gas nitrogen
15	Power supply system	Explosion-proof distribution box, 220v or 380V incoming power supply, all circuit systems of the equipment are provided with explosion-proof treatment and effectively grounded.
16	Lighting	Explosion proof ceiling lamp, integrated design.
17	Filter unit	The filter device can be disassembled as a whole, the internal filter bracket can be reused.
18	Drain port	The drain port is for clean of tank.
19	Door	One door.
20	Surface treatment	The equipment is polished, derusted and degreased. With external three coats of painting.

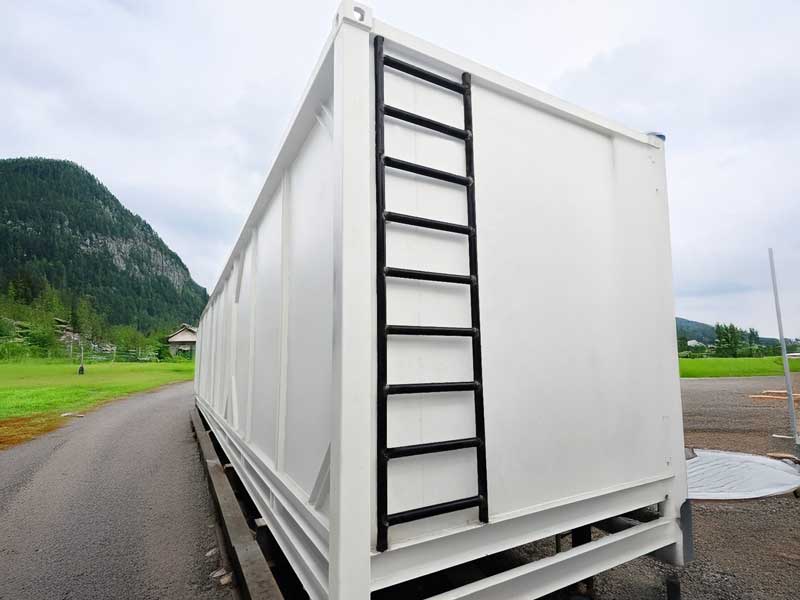

21	Accessories	1 external ladder
22	Other requirements	All instrument and switch indications in English. With Customer’s Logo and company name.
