Pulley Lagging
REXWRAP rubber and ceramic pulley lagging is available with diamond-grooved and ceramic profiles to improve traction and support reliable belt operation. Standard roll lengths of 10 m and 20 m are available, subject to product type and stock
Diamond Lagging · Ceramic Lagging · Finger-Gripped Tiles
High Wear Areas

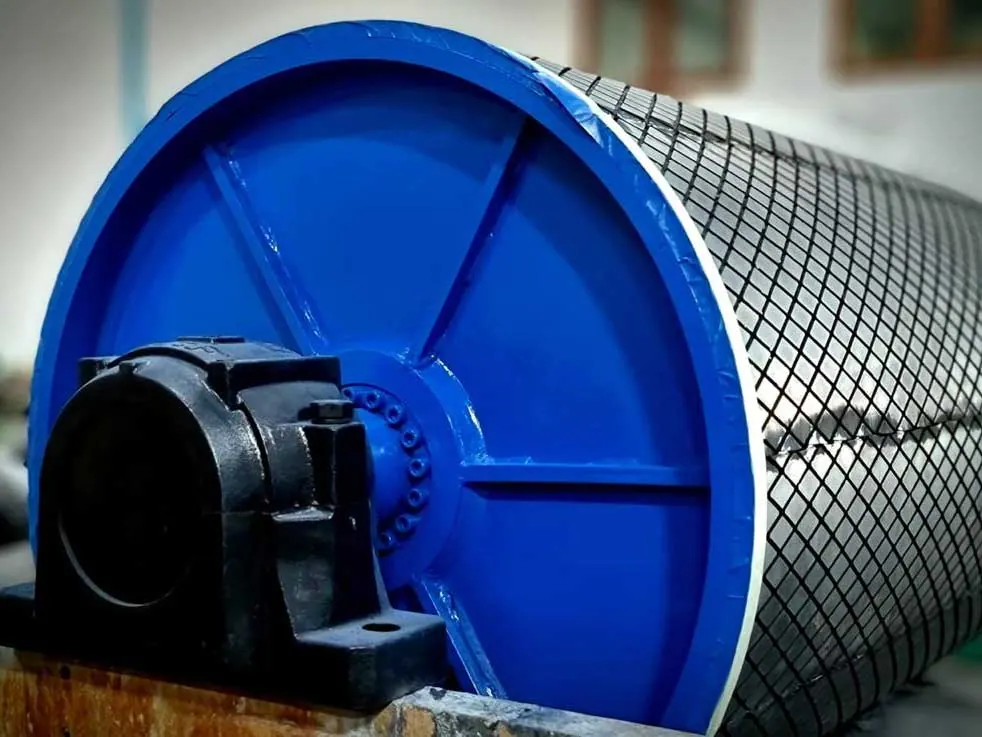

REXWRAP™ Diamond Pulley Lagging
REXWRAP™ DIAMOND PULLEY LAGGING is our trademarked high performance 60 Duro Black lagging to give ultimate abrasion resistance in the highest wear areas of a pulley.
REXWRAP™ is a self cleaning lagging with a large diamond Profile to help with channeling dirt and water away from the pulley.
REXWRAP™ is available with a CN bonding layer to give excellent adhesion to the Steel Pulley surface.
REXWRAP™ has outstanding physical properties making it the number one choice for Pulley lagging.
Features & Properties
| Technical Specifications | |
|---|---|
| Polymer | NR/BR |
| Specific gravity | 1.10 ± 0.05 |
| Hardness | 60 ± 5 Shore A |
| Tensile strength (min) | 20 MPa |
| Elongation at break (min) | 600 % |
| Abrasion resistance (max) | 90 mm³ |
| Temperature Rating | -20°C to +70°C |
Available Dimensions
110 x 500 x 20000 mm
212 x 500 x 20000 mm
315 x 500 x 20000 mm
* REXWRAP™ Laggings can be manufactured and supplied in a wide variety of lengths and thickness. Please contact us with your requirements
+
+
+
92% Alumina Ceramic
REXWRAP™ Ceramic Pulley Lagging
REXWRAP™ CERAMIC PULLEY LAGGING is our trademarked high performance 60 Duro Black lagging with 92% Alumina ceramic tiles vulcanized into the rubber to give ultimate abrasion resistance in the most high wear areas of a pulley.
REXWRAP™ is a self cleaning pulley lagging with Radius grooves to conquer the effect of excessive dirt and water build up on the pulley.
REXWRAP™ Alumina Ceramic tiles have a dimpled profile to help with traction and grip.
REXWRAP™ is available with a CN bonding layer to give excellent adhesion to the Steel Pulley surface.
REXWRAP™ has outstanding physical properties making it the number one choice for Pulley lagging.
Features & Properties
| Technical Specifications | |
|---|---|
| Polymer | NR/BR |
| Specific gravity | 1.13 ± 0.05 |
| Hardness | 60 ± 5 Shore A |
| Tensile strength (min) | 17 MPa |
| Elongation at break (min) | 405 % |
| Abrasion resistance (max) | 140 mm³ |
| Temperature Rating | -30°C to +60°C |
| Alumina Content | ≥92% |
| Bulk Density | ≥3.63g/cm³ |
| Hardness R45N | Min 77 |
| Flexural Strength | Min 2,447 Kg/cm2 |
| Compressive Strength | Min 19,884 Kg/cm2 |
+
+
+
Available Dimensions
112 x 500 x 10000 mm
215 x 500 x 10000 mm
* REXWRAP™ Laggings can be manufactured and supplied in a wide variety of lengths and thickness. Please contact us with your requirements
Comparison Table for Co-Efficient of Friction
| Co-efficient of Friction | Bare Steel Pulley | Rubber Lagging | Ceramic Lagging |
|---|---|---|---|
| Dry | 0.25 | 0.50 | 0.75 |
| Wet | 0.15 | 0.35 | 0.55 |
Engineered Tiles

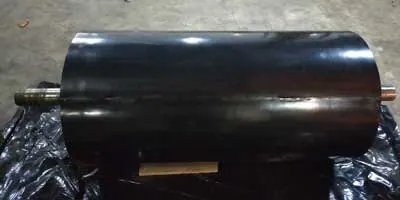

Finger Gripped Engineered Ceramic Pulley Lagging
01
Excellent bonding strength from rubber to tiles.
02
Back of the tile, the grooves are cut to further improve tile bonding and eliminates tile propping out.
03
High tile quality with specified tile specs.
04
Square protrusions in the end avoida tracking issues.
05
Round knobs are gentle to the belt compared to harsh diamond shaped tiles knobs.
06
Radius grooves is an advantage (Allows small pulley diameter and has a self-celaning effect)
07
Requires lesser number of sheets cover existing pulley face width
08
10m Roll of 500m width is advantageous, as there is minimal wastage. The sheets available in the market are less than 200m wide.
+
